Apartment Floor Plan Examples
A layout changes as it gains bedrooms, and each extra room costs floor area; these apartment floor plan examples show how much. The table compares five layouts from a studio to four bedrooms, and the notes below take two of them apart room by room.
Studio to four bedrooms, compared
| Layout | Bedrooms | Rooms | Outer size | m² | sq ft |
|---|---|---|---|---|---|
| Studio floor plan | 0 | 3 | 6.00 × 6.50 m (19′ 8″ × 21′ 4″) | 39.0 | 420 |
| 1 Bedroom floor plan | 1 | 5 | 7.80 × 9.70 m (25′ 7″ × 31′ 10″) | 75.7 | 814 |
| 2 Bedroom floor plan | 2 | 6 | 9.80 × 9.70 m (32′ 2″ × 31′ 10″) | 95.1 | 1023 |
| 3 Bedroom floor plan | 3 | 8 | 13.80 × 9.70 m (45′ 3″ × 31′ 10″) | 133.9 | 1441 |
| 4 Bedroom floor plan | 4 | 8 | 13.80 × 9.70 m (45′ 3″ × 31′ 10″) | 133.9 | 1441 |
How the layouts grow
From one bedroom up, the layouts share a hallway, mostly with the day rooms on one side and the bedrooms and bathroom on the other; the four-bedroom puts its fourth bedroom on the day side. Each added room makes the plan wider, not deeper: the one-bedroom is 7.80 m (25′ 7″) wide, the two-bedroom 9.80 m (32′ 2″), and the three- and four-bedroom layouts 13.80 m (45′ 3″), all 9.70 m (31′ 10″) deep.
Growing sideways keeps every room except the hallway on an outside wall, with a window of its own.

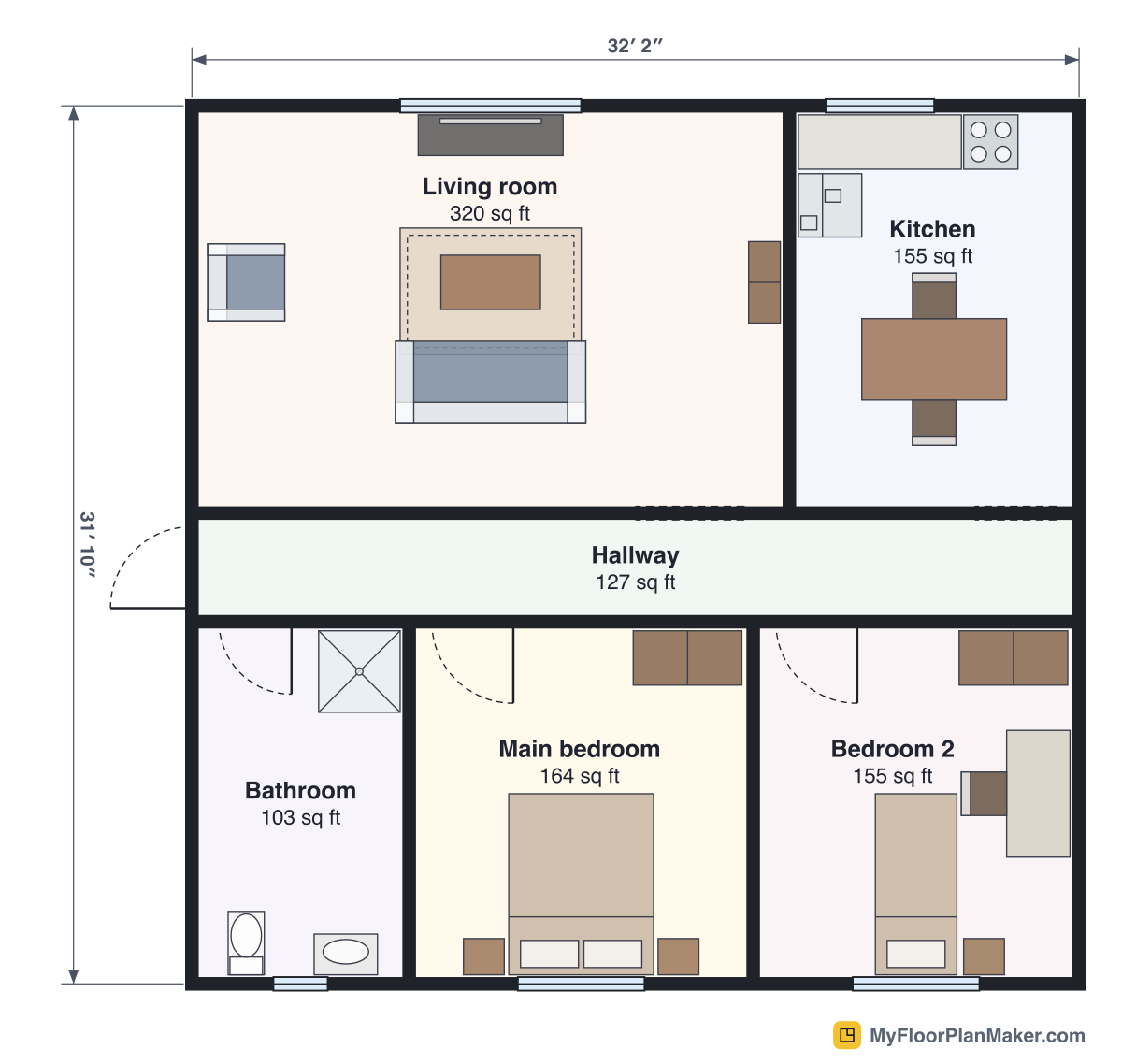

A two-bedroom apartment
2 Bedroom
6 rooms · 95.1 m² (1023 sq ft) · outer size 9.80 × 9.70 m (32′ 2″ × 31′ 10″)
What to notice in the two-bedroom plan
Similar bedrooms
3.80 × 4.00 m (12′ 6″ × 13′ 1″) and 3.60 × 4.00 m (11′ 10″ × 13′ 1″): neither flatmate gets a box room.
The bathroom by the door
Guests can reach the bathroom without passing the bedrooms.
Doorless day rooms
Living room and kitchen open to the hallway, so daylight from both reaches it.
The same flat, finished
Modern 2 Bedroom Apartment
7 rooms · 105.6 m² (1137 sq ft) · outer size 9.80 × 11.30 m (32′ 2″ × 37′ 1″)
What the finished version adds
A balcony
10.6 m² (114 sq ft) of outdoor space off the living room.
Overall dimensions
Dimension lines give the total width and depth, as on a printed plan.
A note on the drawing
Text on the plan explains what it is; use it for your own notes and room labels.
Compare an apartment you are considering
Open the closest layout
Pick the template with the same number of bedrooms.
Match the listing
Type the room sizes from the listing or the brochure into the walls.
Furnish it
Add your own furniture to see what fits.
Save both
Each opened template is saved as a separate project in this browser; switch between them from the start screen, or open them in two tabs.
Apartment templates
- Studio template: rooms, sizes and furniture3 rooms · 39.0 m² (420 sq ft)
- 1 Bedroom template: rooms, sizes and furniture5 rooms · 75.7 m² (814 sq ft)
- 2 Bedroom template: rooms, sizes and furniture6 rooms · 95.1 m² (1023 sq ft)
- Modern 2 Bedroom Apartment template: rooms, sizes and furniture7 rooms · 105.6 m² (1137 sq ft)
- Apartment template: rooms, sizes and furniture3 rooms · 52.5 m² (565 sq ft)
Frequently asked questions
Why do the areas include the hallway?
The editor measures every closed room, hallways and balconies included. Listings often count only certain rooms, so compare like with like.
Can I draw my own apartment from a listing?
Yes. Start from the closest example or from a blank plan, then type each wall length from the listing.
How much area does an extra bedroom add?
In these layouts, going from one to two bedrooms adds 19.4 m² (209 sq ft): the plan gets wider, and the living room grows with it.
Why does the studio not follow the same pattern?
A studio has no hallway: the front door opens into the kitchenette and everything else is one room. From one bedroom up, the layouts share the hallway pattern.
Are these layouts typical of real apartments?
They are simple, rectangular layouts chosen to be easy to read and change. Real apartments vary with the building, so use them as a starting point and redraw your own flat from its measurements.
