3 BHK House Plan Template for a 30×50 ft Plot
Three bedrooms on one floor with a hall, dining area, kitchen, two toilets, a pooja room and a sit-out: 88.9 m² (957 sq ft) on a 30 × 50 ft plot (1,500 sq ft · 166.7 sq yd (gaj) · 139.4 m²), with car parking in front of the third bedroom.

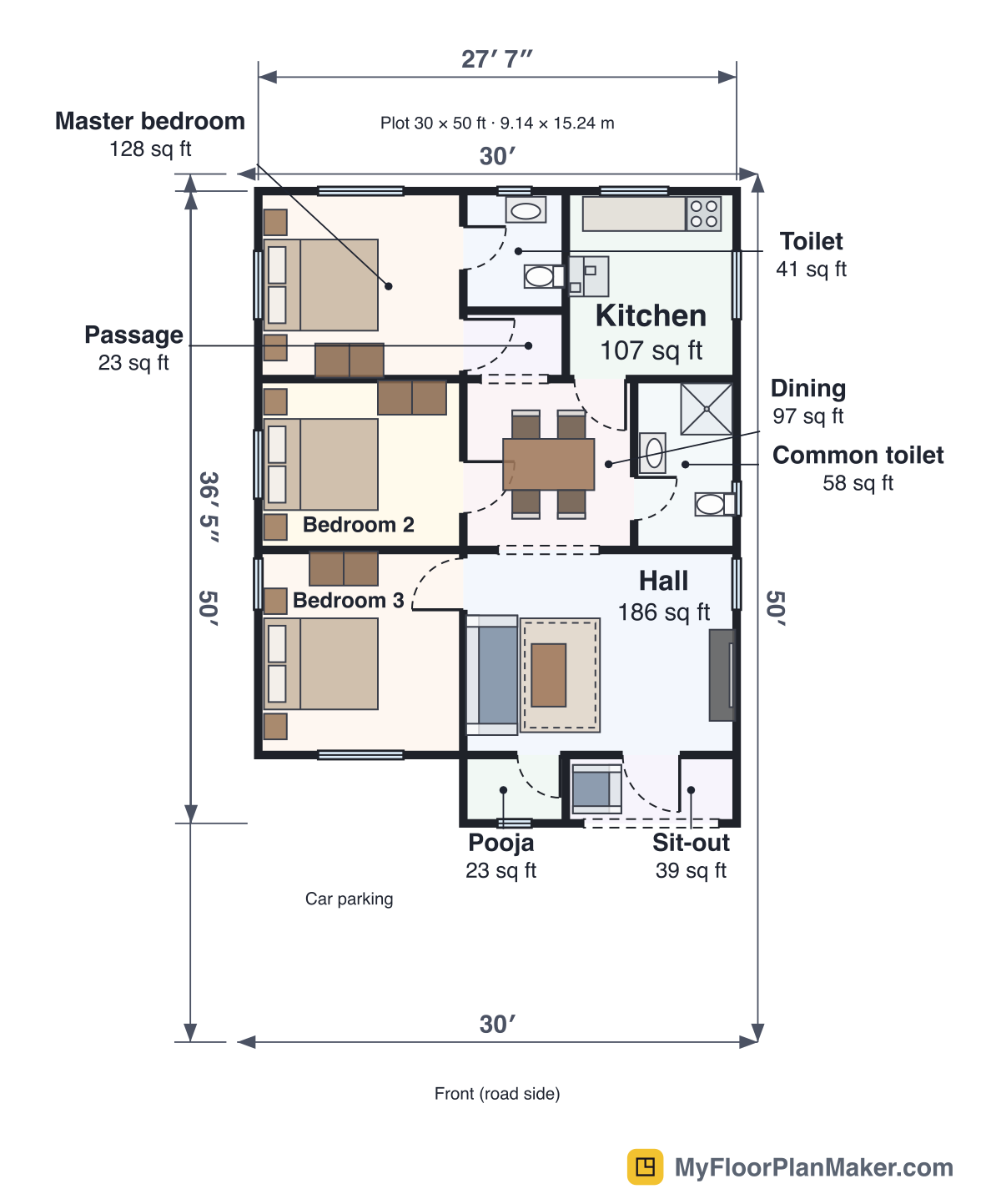

Floor plan and 3D preview
- Rooms
- 11
- Floors
- 1
- Total room area
- 88.9 m² (957 sq ft)
- Outer size
- 8.40 × 11.10 m (27′ 7″ × 36′ 5″)
- Doors and windows
- 8 doors · 11 windows
- Furniture items
- 30
Opens your own copy in the editor; the template itself never changes.
Layout overview
The house measures 8.40 × 11.10 m (27′ 7″ × 36′ 5″) to the wall center lines. The three bedrooms line the left side, one behind the other; the kitchen and the master toilet are at the back, the common toilet runs down the right side between the kitchen and the hall, and the pooja room and the sit-out stand in front of the hall, facing the road.
Bedroom 3 and the pooja room open straight from the hall, bedroom 2 from the dining area, and the master bedroom through a short passage with its own toilet beside it.
Rooms and dimensions
| Room | Width × length | m² | sq ft |
|---|---|---|---|
| Hall | 4.80 × 3.60 m (15′ 9″ × 11′ 10″) | 17.3 | 186 |
| Bedroom 3 | 3.60 × 3.60 m (11′ 10″ × 11′ 10″) | 13.0 | 140 |
| Master bedroom | 3.60 × 3.30 m (11′ 10″ × 10′ 10″) | 11.9 | 128 |
| Bedroom 2 | 3.60 × 3.00 m (11′ 10″ × 9′ 10″) | 10.8 | 116 |
| Kitchen | 3.00 × 3.30 m (9′ 10″ × 10′ 10″) | 9.9 | 107 |
| Dining | 3.00 × 3.00 m (9′ 10″ × 9′ 10″) | 9.0 | 97 |
| Common toilet | 1.80 × 3.00 m (5′ 11″ × 9′ 10″) | 5.4 | 58 |
| Toilet | 1.80 × 2.10 m (5′ 11″ × 6′ 11″) | 3.8 | 41 |
| Sit-out | 3.00 × 1.20 m (9′ 10″ × 3′ 11″) | 3.6 | 39 |
| Passage | 1.80 × 1.20 m (5′ 11″ × 3′ 11″) | 2.2 | 23 |
| Pooja | 1.80 × 1.20 m (5′ 11″ × 3′ 11″) | 2.2 | 23 |
| Total | 88.9 | 957 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
Large hall at the front
The 4.80 × 3.60 m (15′ 9″ × 11′ 10″) hall is the largest room and opens to the sit-out, the pooja room and the dining area.
Bedroom 3 near the entrance
At 3.60 × 3.60 m (11′ 10″ × 11′ 10″), the front bedroom suits parents or guests and is reached without crossing the dining area.
Wet rooms close together
The master toilet sits beside the kitchen and the common toilet directly in front of the kitchen, which keeps the plumbing runs short. The pooja room at the front shares no wall with either toilet.
Furniture in the plan
- NightstandLibrary size 0.45 × 0.40 m (1′ 6″ × 1′ 4″)× 6
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 4
- Double bedLibrary size 1.60 × 2.00 m (5′ 3″ × 6′ 7″)× 3
- WardrobeLibrary size 1.20 × 0.60 m (3′ 11″ × 2′)× 3
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 2
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 2
- ArmchairLibrary size 0.85 × 0.85 m (2′ 9″ × 2′ 9″)× 1
- Coffee tableLibrary size 1.10 × 0.60 m (3′ 7″ × 2′)× 1
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 1
- Dining tableLibrary size 1.60 × 0.90 m (5′ 3″ × 2′ 11″)× 1
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 1
- RugLibrary size 2.00 × 1.40 m (6′ 7″ × 4′ 7″)× 1
- ShowerLibrary size 0.90 × 0.90 m (2′ 11″ × 2′ 11″)× 1
- SofaLibrary size 2.10 × 0.90 m (6′ 11″ × 2′ 11″)× 1
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
- TV standLibrary size 1.60 × 0.45 m (5′ 3″ × 1′ 6″)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A family home on a 30 × 50 plot
Use it as a single-floor starting point and change the room sizes to your plot.
Comparing 2 and 3 BHK
Open the 2 BHK template next to this one to see what the extra 10 ft of plot depth buys.
Furniture planning
Check that beds, wardrobes and the dining table fit before you buy.
Things to consider
Two toilets for three bedrooms
Only the master bedroom has an attached toilet. Take a corner of bedroom 3 for a third toilet if you need one.
Bedroom door in the hall
Bedroom 3 opens directly into the hall, which is common but less private. Move the door to the bedroom 2 side if you prefer.
Room sizes are to wall centers
The rooms total 88.9 m² (957 sq ft) measured to the wall center lines; carpet area will be smaller once wall thickness is taken off.
Windows facing the neighbours
The bedrooms, kitchen and hall have windows in the side walls, which stand less than half a metre inside the plot edges. Local rules may ask for a wider side margin before such openings are allowed.
Make it fit your space
Widen the hall
Drag the wall between the hall and bedroom 3; joined walls stay connected and the room areas update.
Add a balcony upstairs
Add a floor above, then draw a narrow room over the sit-out for a balcony.
Show setbacks
Start a project from a 30 × 50 ft plot with setbacks to see the buildable outline, then copy this house into it.
Frequently asked questions
How big is the 3 BHK plan?
88.9 m² (957 sq ft) in 11 rooms, all on the ground floor; the house is 8.40 × 11.10 m (27′ 7″ × 36′ 5″).
How big are the three bedrooms?
Bedroom 3: 3.60 × 3.60 m (11′ 10″ × 11′ 10″); Master bedroom: 3.60 × 3.30 m (11′ 10″ × 10′ 10″); Bedroom 2: 3.60 × 3.00 m (11′ 10″ × 9′ 10″).
How much room is there to park a car?
The plan leaves an open area about 5 m (16′ 5″) deep in front of bedroom 3, about one car bay wide. Measure your own car against it with the measure tool.
What is the area of a 30 × 50 ft plot?
1,500 sq ft · 166.7 sq yd (gaj) · 139.4 m² (9.14 × 15.24 m).
