House Floor Plan Examples
Three complete homes make up these house floor plan examples, each with notes on why the layout works and where it falls short: a single-level home with three bedrooms and a dining room, a four-bedroom version on the same footprint, and a villa on two floors.
How to read these plans
The drawings are generated from the plans themselves, at true proportions, with walls at their real thickness and rooms shaded in color. Sizes are measured to the wall center lines, which is how the editor measures rooms.
Under each plan, one link opens it as your own copy in the editor and another goes to its template page, where every room is listed with its size.
Single-level home with three bedrooms
3 Bedroom
8 rooms · 133.9 m² (1441 sq ft) · outer size 13.80 × 9.70 m (45′ 3″ × 31′ 10″)
Why the three-bedroom layout works
One hallway, two sides
A 1.20 m (3′ 11″) wide hallway runs the length of the house: shared rooms on one side, bedrooms and the bathroom on the other.
Dining between living and cooking
The dining room sits between the kitchen and the living room, so the living room stays a separate, quieter room. There is no opening straight from the kitchen to the dining room: plates go out through the hallway.
Where it falls short
One bathroom serves three bedrooms. In a family home, an en-suite taken from the main bedroom is the usual fix.

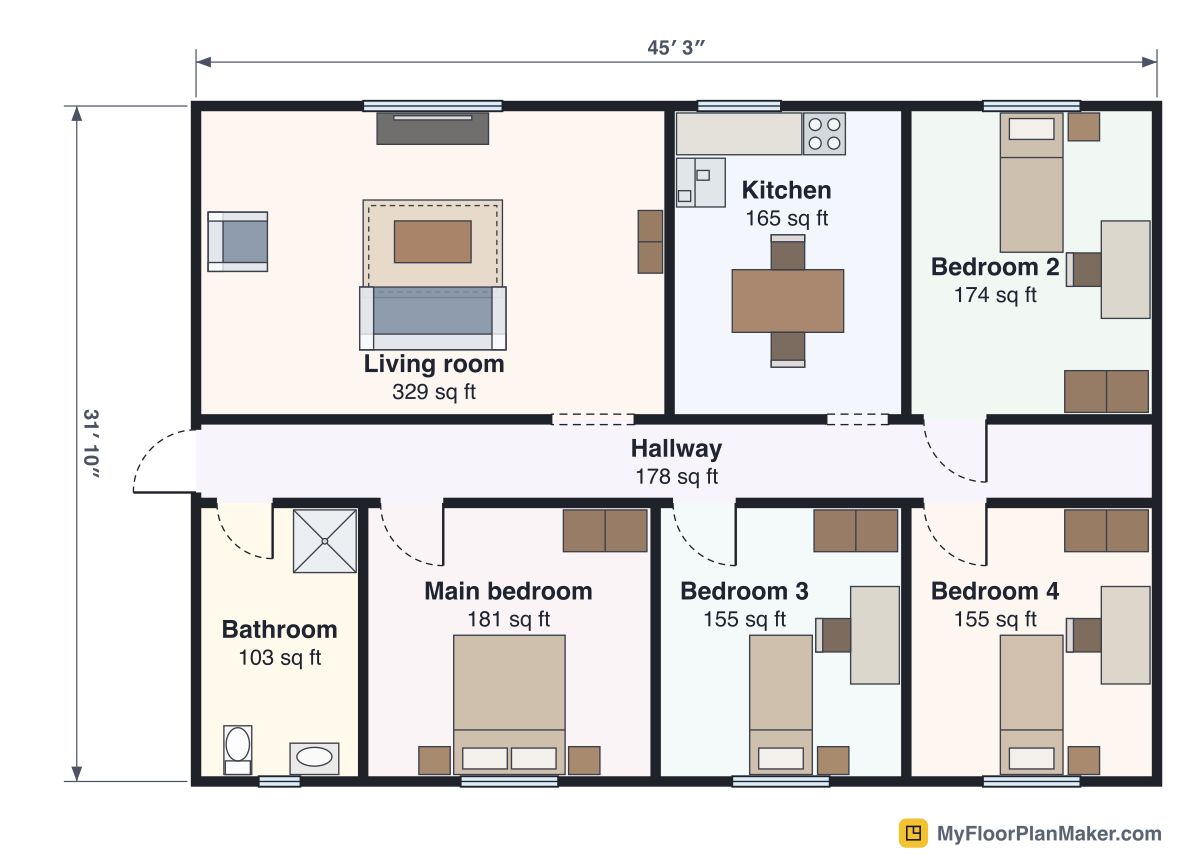

Four bedrooms on the same footprint
4 Bedroom
8 rooms · 133.9 m² (1441 sq ft) · outer size 13.80 × 9.70 m (45′ 3″ × 31′ 10″)
What changes with a fourth bedroom
Same outline, different use
Both plans are 13.80 × 9.70 m (45′ 3″ × 31′ 10″). The dining room is traded for a bedroom, and the table moves into the kitchen.
A bedroom on the day side
The extra bedroom sits next to the kitchen, away from the others. It suits a guest room, a teenager or a home office.
Decide before you build
Put the two plans side by side to choose between a dining room and an extra bedroom.
Where it falls short
Four bedrooms still share one bathroom, and the kitchen table seats two. Fix both before anything else.
A villa on two floors
Villa
12 rooms · 216.0 m² (2325 sq ft) · outer size 12.00 × 9.00 m (39′ 4″ × 29′ 6″)
How the villa splits its two floors
Day downstairs, night upstairs
The ground floor (108.0 m² (1163 sq ft)) holds the living room, kitchen-diner, a guest bedroom and a bathroom; the first floor (108.0 m² (1163 sq ft)) has three bedrooms, a study and a second bathroom.
The stair in the entrance hall
The stair rises from the hallway by the front door, so you reach the stairs without crossing the living room.
A study apart from the bedrooms
Upstairs, the study is across the landing from the bedrooms, so work and sleep stay separate.
Where it falls short
The ground-floor bathroom door opens from the kitchen-diner, and the main bedroom has no en-suite.
Turn an example into your own house
Open the closest layout
Pick by number of bedrooms and floors; everything in it can change.
Set the outer size
Select an outer wall and type its length, then lock it so later edits keep it.
Move the inside walls
Drag walls between rooms; areas update in the area schedule as you go.
Check it in 3D
Walk through in 3D to see how the rooms connect before you export a PDF.
Frequently asked questions
Can I add a floor to a single-level example?
Yes. Add a floor above from the Floors menu and place a stair with the stair tool (S). The floor below shows faintly as a guide while you draw.
Are these plans ready to build?
No. They are layout examples for planning and discussion. A builder, architect or local authority will need drawings that meet the rules where you live.
One floor or two: how do I choose?
On the same plot, two floors give more rooms: the villa has 216.0 m² (2325 sq ft) over a 12.00 × 9.00 m (39′ 4″ × 29′ 6″) footprint. One floor means no stairs and easier access to every room. Your plot size, budget and who will live there decide it.
Why are the areas bigger than a listing for a similar house?
The areas here are measured to the wall center lines and include hallways. Listings may quote internal floor area, or count only some rooms, so compare like with like.
Can I change the size of an example?
Yes. Open it, select an outer wall and type a new length; walls joined to it follow, and the room areas update in the area schedule.
