4 BHK Duplex House Plan Template for a 40×60 ft Plot
A two-floor house on a 40 × 60 ft plot (2,400 sq ft · 266.7 sq yd (gaj) · 223 m²): a guest bedroom, hall, dining, kitchen, wash area and pooja room downstairs, three bedrooms and a family lounge upstairs, 221.0 m² (2379 sq ft) over both floors.
Floor plan and 3D preview
- Rooms
- 21
- Floors
- 2
- Total room area
- 221.0 m² (2379 sq ft)
- Outer size
- 11.40 × 10.80 m (37′ 5″ × 35′ 5″)
- Doors and windows
- 13 doors · 19 windows
- Furniture items
- 52
Opens your own copy in the editor; the template itself never changes.
Layout overview

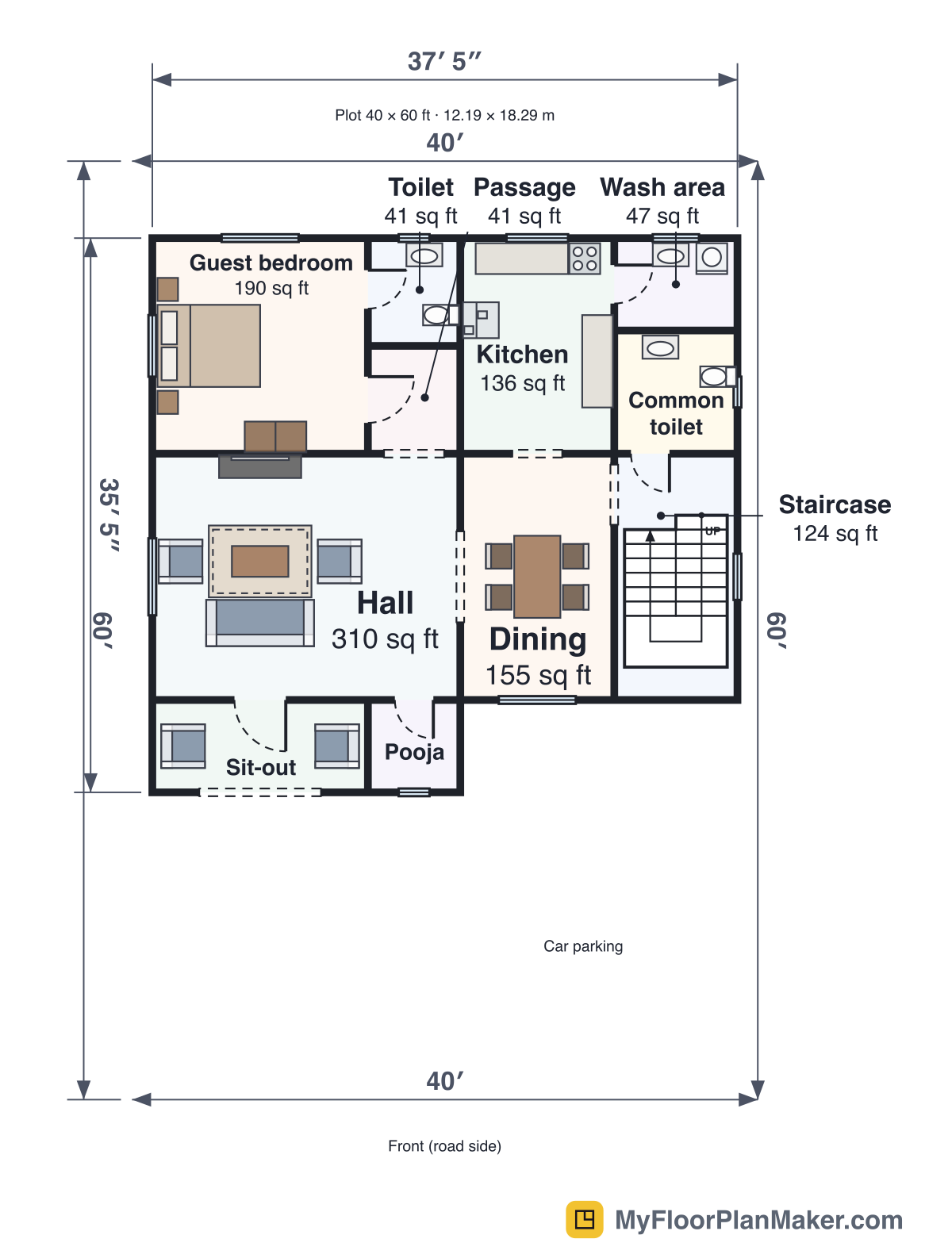

The ground floor measures 11.40 × 10.80 m (37′ 5″ × 35′ 5″) and the first floor 11.40 × 10.20 m (37′ 5″ × 33′ 6″) to the wall center lines. On the ground floor the main door opens from the sit-out into the 6.00 × 4.80 m (19′ 8″ × 15′ 9″) hall; the dining area and the staircase are to its right with the kitchen behind the dining area, and the guest bedroom with its own toilet is at the back.

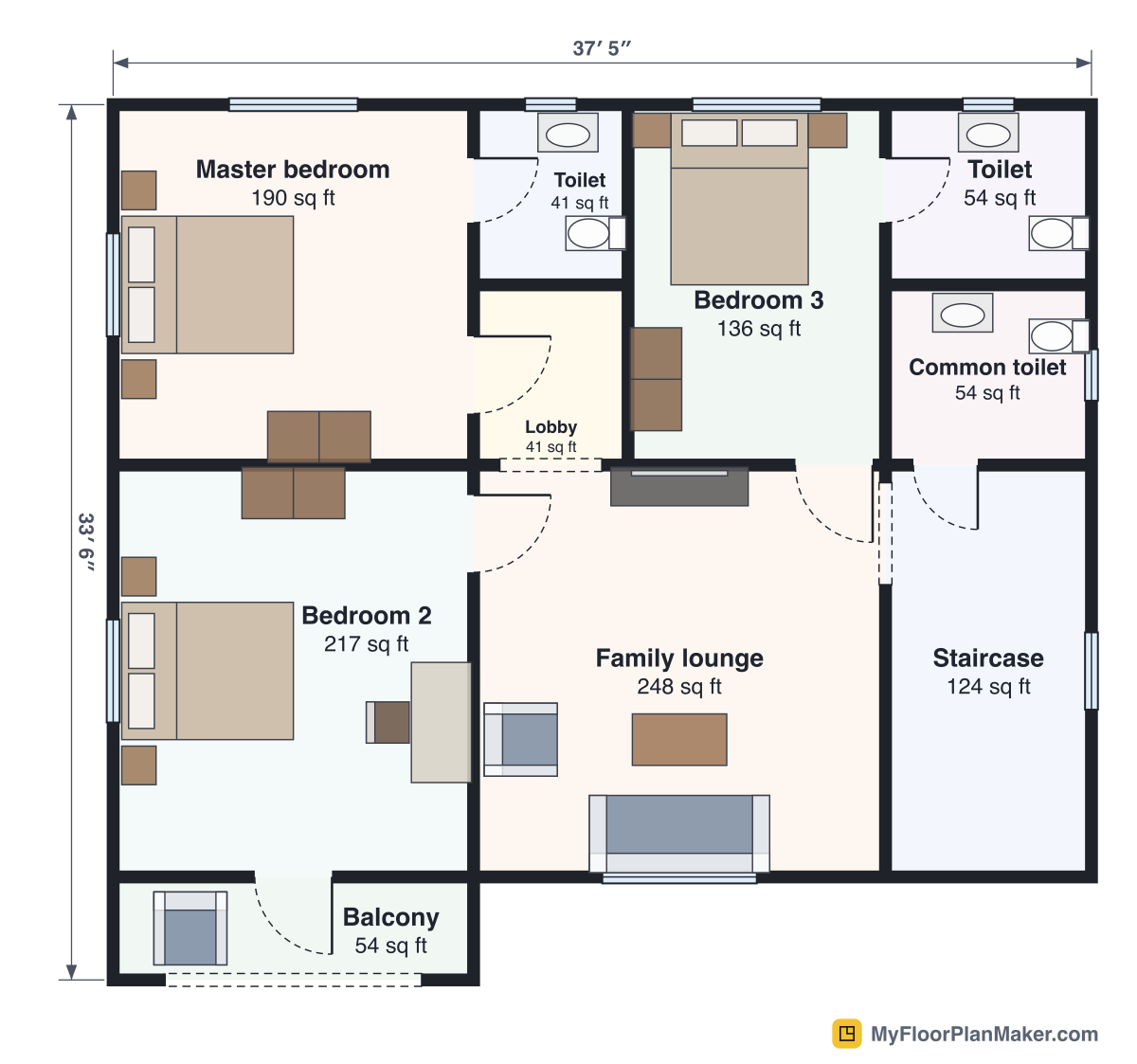

A dog-leg stair rises in its own staircase room to the first floor, where a family lounge links bedrooms 2 and 3, the master bedroom (through a small lobby) and the stair. Bedroom 2 opens onto a front balcony above the sit-out.
Rooms and dimensions
| Room | Floor | Width × length | m² | sq ft |
|---|---|---|---|---|
| Hall | Ground Floor | 6.00 × 4.80 m (19′ 8″ × 15′ 9″) | 28.8 | 310 |
| Guest bedroom | Ground Floor | 4.20 × 4.20 m (13′ 9″ × 13′ 9″) | 17.6 | 190 |
| Dining | Ground Floor | 3.00 × 4.80 m (9′ 10″ × 15′ 9″) | 14.4 | 155 |
| Kitchen | Ground Floor | 3.00 × 4.20 m (9′ 10″ × 13′ 9″) | 12.6 | 136 |
| Staircase | Ground Floor | 2.40 × 4.80 m (7′ 10″ × 15′ 9″) | 11.5 | 124 |
| Sit-out | Ground Floor | 4.20 × 1.80 m (13′ 9″ × 5′ 11″) | 7.6 | 81 |
| Common toilet | Ground Floor | 2.40 × 2.40 m (7′ 10″ × 7′ 10″) | 5.8 | 62 |
| Wash area | Ground Floor | 2.40 × 1.80 m (7′ 10″ × 5′ 11″) | 4.3 | 47 |
| Passage | Ground Floor | 1.80 × 2.10 m (5′ 11″ × 6′ 11″) | 3.8 | 41 |
| Toilet | Ground Floor | 1.80 × 2.10 m (5′ 11″ × 6′ 11″) | 3.8 | 41 |
| Pooja | Ground Floor | 1.80 × 1.80 m (5′ 11″ × 5′ 11″) | 3.2 | 35 |
| Family lounge | First Floor | 4.80 × 4.80 m (15′ 9″ × 15′ 9″) | 23.0 | 248 |
| Bedroom 2 | First Floor | 4.20 × 4.80 m (13′ 9″ × 15′ 9″) | 20.2 | 217 |
| Master bedroom | First Floor | 4.20 × 4.20 m (13′ 9″ × 13′ 9″) | 17.6 | 190 |
| Bedroom 3 | First Floor | 3.00 × 4.20 m (9′ 10″ × 13′ 9″) | 12.6 | 136 |
| Staircase | First Floor | 2.40 × 4.80 m (7′ 10″ × 15′ 9″) | 11.5 | 124 |
| Balcony | First Floor | 4.20 × 1.20 m (13′ 9″ × 3′ 11″) | 5.0 | 54 |
| Common toilet | First Floor | 2.40 × 2.10 m (7′ 10″ × 6′ 11″) | 5.0 | 54 |
| Toilet | First Floor | 2.40 × 2.10 m (7′ 10″ × 6′ 11″) | 5.0 | 54 |
| Lobby | First Floor | 1.80 × 2.10 m (5′ 11″ × 6′ 11″) | 3.8 | 41 |
| Toilet | First Floor | 1.80 × 2.10 m (5′ 11″ × 6′ 11″) | 3.8 | 41 |
| Total | 221.0 | 2379 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
Guest bedroom on the ground floor
The 4.20 × 4.20 m (13′ 9″ × 13′ 9″) guest bedroom with an attached toilet suits elderly parents who should avoid stairs.
A toilet for every floor and most bedrooms
The guest bedroom, the master bedroom and bedroom 3 each have an attached toilet, and there is a common toilet on each floor.
Wash area beside the kitchen
The 2.40 × 1.80 m (7′ 10″ × 5′ 11″) wash area opens from the kitchen and holds the washing machine.
Family lounge upstairs
The 23.0 m² (248 sq ft) lounge gives the bedroom floor its own sitting room.
Furniture in the plan
- NightstandLibrary size 0.45 × 0.40 m (1′ 6″ × 1′ 4″)× 8
- ArmchairLibrary size 0.85 × 0.85 m (2′ 9″ × 2′ 9″)× 6
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 6
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 5
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 5
- Double bedLibrary size 1.60 × 2.00 m (5′ 3″ × 6′ 7″)× 4
- WardrobeLibrary size 1.20 × 0.60 m (3′ 11″ × 2′)× 4
- Coffee tableLibrary size 1.10 × 0.60 m (3′ 7″ × 2′)× 2
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 2
- SofaLibrary size 2.10 × 0.90 m (6′ 11″ × 2′ 11″)× 2
- TV standLibrary size 1.60 × 0.45 m (5′ 3″ × 1′ 6″)× 2
- DeskLibrary size 1.40 × 0.70 m (4′ 7″ × 2′ 4″)× 1
- Dining tableLibrary size 1.60 × 0.90 m (5′ 3″ × 2′ 11″)× 1
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 1
- RugLibrary size 2.00 × 1.40 m (6′ 7″ × 4′ 7″)× 1
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
- WasherLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A joint family house
Parents on the ground floor, the family upstairs, with shared rooms in between.
Planning a duplex
See how the stair and the rooms line up from one floor to the next.
A brief for an architect
Export both floors to PDF and mark the changes you want.
Things to consider
Check the stair
It is a 1.00 m (3′ 3″) wide dog-leg stair with the editor's default 0.28 m (11″) going for a 2.70 m (8′ 10″) floor height. Check width, rise and going against the rules where you build.
Deep front yard
The house leaves a deep open area in front for parking and a garden. Move the house forward if your setbacks allow and you want a larger back yard.
Bedroom 2 is larger than the master
Bedroom 2 (20.2 m² (217 sq ft)) is bigger than the master bedroom (17.6 m² (190 sq ft)), but the master has the attached toilet. Swap the names if that suits you better.
Side margins are narrow
Both floors have side windows, but the house leaves less than half a metre to each side boundary of the 40 ft plot. Confirm the side setback where you build; it may mean narrowing the house.
Make it fit your space
Switch floors
Use the floors menu to move between the ground and first floor; the floor below shows faintly underneath.
Plan the terrace
Add a floor above and draw the stair room; leave the rest open as the terrace.
Turn the lounge into a fifth bedroom
Draw a wall across the lounge and add a door (D) to split off a bedroom.
Frequently asked questions
How big is each floor of the 4 BHK duplex?
Ground floor 113.4 m² (1221 sq ft), first floor 107.6 m² (1159 sq ft), 221.0 m² (2379 sq ft) in all, measured to the wall center lines.
How many toilets are there?
Five: two on the ground floor (one attached to the guest bedroom, one common) and three on the first floor (attached to the master bedroom and bedroom 3, and one common).
Can I see both floors in 3D?
The preview on this page shows one floor at a time. In the editor the 3D view stacks both floors, and you can isolate one to look inside it.
What is 40 × 60 ft in metres and gaj?
12.19 × 18.29 m; 2,400 sq ft · 266.7 sq yd (gaj) · 223 m².
Does the plan follow Vastu?
The template was not drawn to Vastu. The editor's Vastu panel gives advisory checks of where each room sits, assuming north is at the top of the plan; move or mirror rooms to follow its suggestions.
