Retail Shop Floor Plan Template
Use this retail shop floor plan template to try out shelving before you order fixtures. The shop of 110.0 m² (1184 sq ft) has a 80.0 m² (861 sq ft) sales floor with a checkout counter by the door, wall shelving and two rows of back-to-back shelving, plus a stockroom, an office and a WC.

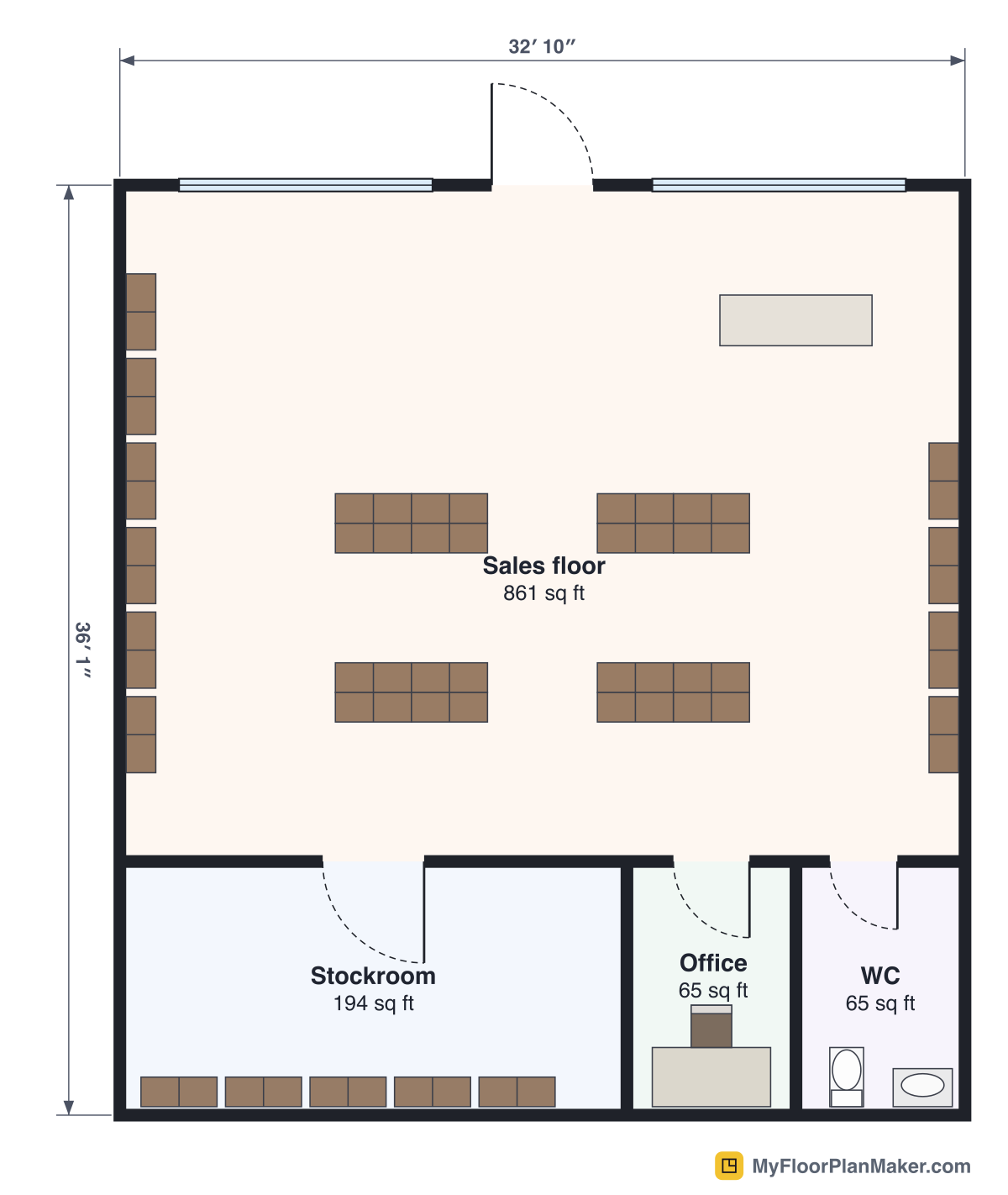

Floor plan and 3D preview
- Rooms
- 4
- Floors
- 1
- Total room area
- 110.0 m² (1184 sq ft)
- Outer size
- 10.00 × 11.00 m (32′ 10″ × 36′ 1″)
- Doors and windows
- 4 doors · 2 windows
- Furniture items
- 36
Opens your own copy in the editor; the template itself never changes.
Layout overview
The sales floor is 10.00 × 8.00 m (32′ 10″ × 26′ 3″), with two large windows in the front wall either side of the entrance. The checkout counter stands near the entrance, so staff can see who comes and goes.
The shelving uses the library's bookshelf item (0.90 × 0.35 m (2′ 11″ × 1′ 2″)) as a shelving unit: 31 of them in all, including the stockroom.
Rooms and dimensions
| Room | Width × length | m² | sq ft |
|---|---|---|---|
| Sales floor | 10.00 × 8.00 m (32′ 10″ × 26′ 3″) | 80.0 | 861 |
| Stockroom | 6.00 × 3.00 m (19′ 8″ × 9′ 10″) | 18.0 | 194 |
| Office | 2.00 × 3.00 m (6′ 7″ × 9′ 10″) | 6.0 | 65 |
| WC | 2.00 × 3.00 m (6′ 7″ × 9′ 10″) | 6.0 | 65 |
| Total | 110.0 | 1184 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
Checkout by the entrance
The counter is just inside the entrance and in view of the door, so staff see who comes and goes.
Aisles between the shelving
Two back-to-back rows in the middle and shelving on the side walls make aisles round the floor: 1.30 m (4′ 3″) between the rows and 2.13 m (7′) to the wall shelving.
A wide stockroom door
The stockroom door is the same width as the front door, for moving stock onto the floor.
Back-of-house together
Stockroom, office and WC sit behind the sales floor, out of view.
Furniture in the plan
- BookshelfLibrary size 0.90 × 0.35 m (2′ 11″ × 1′ 2″)× 31
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 1
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 1
- DeskLibrary size 1.40 × 0.70 m (4′ 7″ × 2′ 4″)× 1
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 1
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A new shop fit-out
Try shelving layouts before ordering units.
A pop-up or market stall
Shrink the sales floor and keep only what you need.
A showroom
Replace shelving with furniture from the library to plan a display.
Things to consider
Generic shelving units
The units are 0.90 × 0.35 m (2′ 11″ × 1′ 2″) each. Real gondolas and wall bays vary, so type your supplier's sizes before you count bays.
The WC opens onto the sales floor
Its door is in the back wall of the shop. If it is staff-only, move the door so it opens from the stockroom or the office.
One counter
There is one checkout position. Add a second counter if you expect queues at busy times.
1.30 m (4′ 3″) aisles
Check aisle widths against your fixtures, trolleys and the accessibility rules where you trade before you finalise the plan.
Make it fit your space
Change the aisle widths
Drag the shelving units one at a time to a new position, then measure the aisle with the measure tool (M).
Resize the shelving
Select a shelving unit and type its width and depth to match your fixtures.
Label the departments
Add text with the text tool (T) to name each area of the sales floor.
Frequently asked questions
Are the shelves real shop fixtures?
They are the library's bookshelf item used as shelving units, 0.90 × 0.35 m (2′ 11″ × 1′ 2″) each. Resize them to match your own fixtures.
How big is the stockroom?
6.00 × 3.00 m (19′ 8″ × 9′ 10″), 18.0 m² (194 sq ft), with shelving along its back wall.
How wide are the aisles in the shop template?
1.30 m (4′ 3″) between the two rows of back-to-back shelving and between the middle groups, and 2.13 m (7′) from the middle shelving to the wall shelving.
Can I use it for a café or a salon?
Yes. Delete the shelving and place tables, chairs, counters or sinks from the library; the rooms, doors and windows stay as they are.
