Restaurant Floor Plan Template
To see how many tables fit and where the kitchen goes, start from this restaurant floor plan template. The restaurant of 144.0 m² (1550 sq ft) seats 32 at 8 tables for four and has a kitchen with two cooking stations, a storeroom and two restrooms, all ready to rearrange.
Floor plan and 3D preview
- Rooms
- 5
- Floors
- 1
- Total room area
- 144.0 m² (1550 sq ft)
- Outer size
- 12.00 × 12.00 m (39′ 4″ × 39′ 4″)
- Doors and windows
- 5 doors · 5 windows
- Furniture items
- 54
Opens your own copy in the editor; the template itself never changes.
Layout overview

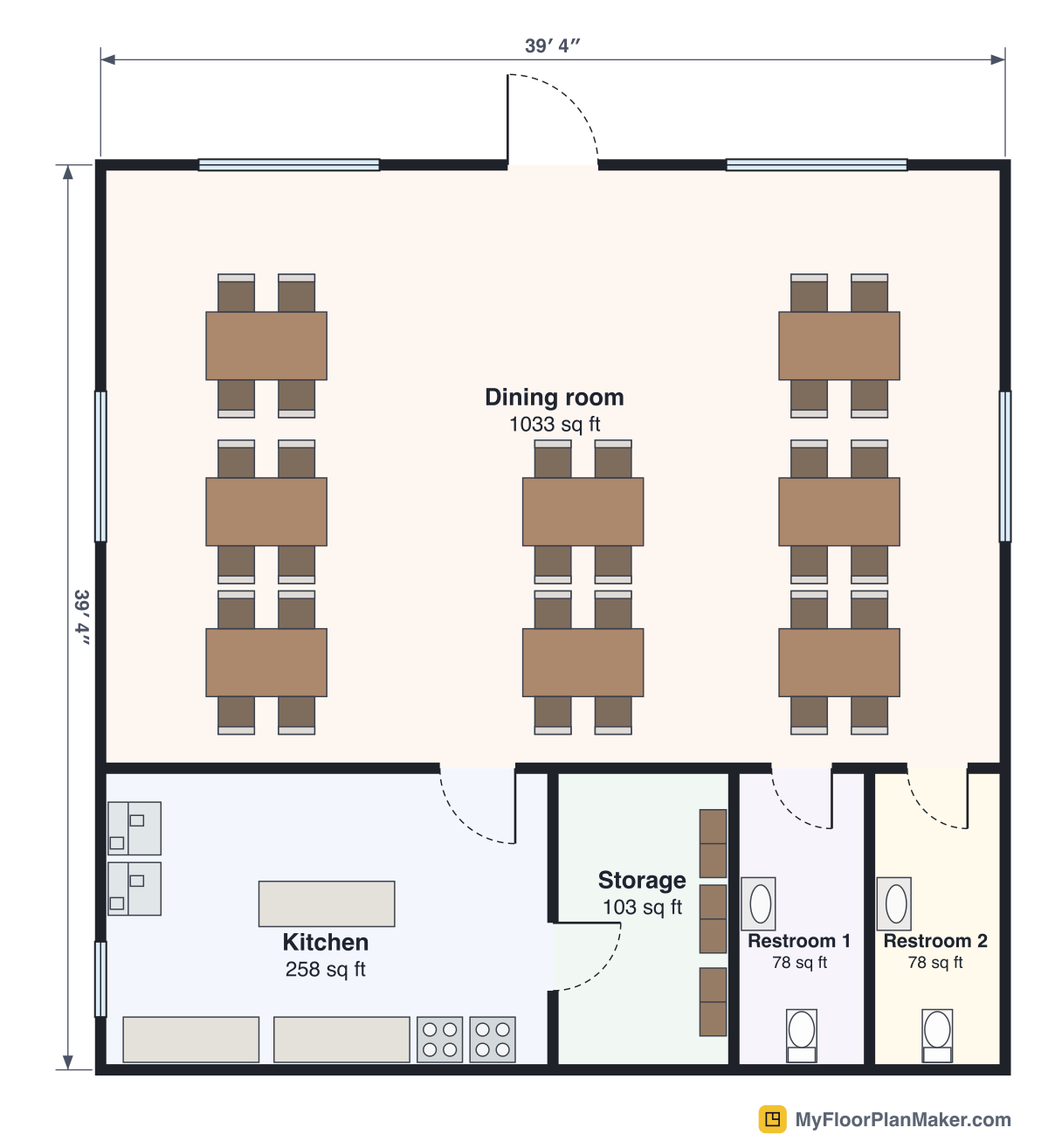

The dining room is 12.00 × 8.00 m (39′ 4″ × 26′ 3″). The tables are laid out in three rows, with the space in front of the entrance left clear so guests are not seated in the doorway.
The 6.00 × 4.00 m (19′ 8″ × 13′ 1″) kitchen has its cooking line along the back wall, two fridges by the side wall and a prep counter in the middle. The storeroom opens from the kitchen, and the two restrooms open from the dining room.
Rooms and dimensions
| Room | Width × length | m² | sq ft |
|---|---|---|---|
| Dining room | 12.00 × 8.00 m (39′ 4″ × 26′ 3″) | 96.0 | 1033 |
| Kitchen | 6.00 × 4.00 m (19′ 8″ × 13′ 1″) | 24.0 | 258 |
| Storage | 2.40 × 4.00 m (7′ 10″ × 13′ 1″) | 9.6 | 103 |
| Restroom 1 | 1.80 × 4.00 m (5′ 11″ × 13′ 1″) | 7.2 | 78 |
| Restroom 2 | 1.80 × 4.00 m (5′ 11″ × 13′ 1″) | 7.2 | 78 |
| Total | 144.0 | 1550 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
A clear entrance
No table sits directly inside the front door, leaving room for guests to arrive and wait.
Kitchen door near the tables
The kitchen door opens into the back of the dining room, close to the tables.
Storage off the kitchen
The storeroom opens from the kitchen, so staff fetch stock without going back through the dining room.
Two separate restrooms
Each restroom has its own door from the dining room.
Furniture in the plan
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 32
- Dining tableLibrary size 1.60 × 0.90 m (5′ 3″ × 2′ 11″)× 8
- BookshelfLibrary size 0.90 × 0.35 m (2′ 11″ × 1′ 2″)× 3
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 3
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 2
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 2
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 2
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 2
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A café or restaurant fit-out
Test seating layouts and see how many tables fit.
An event layout
Rearrange the tables for a function and export a PDF for staff.
A staff canteen
Use the dining room and kitchen as a starting point for a workplace canteen.
Things to consider
Gangways run front to back
Between the columns of tables there is at least 1.80 m (5′ 11″). Between the rows the chair backs come within 0.10 m (4″) of each other, so staff cannot pass there once guests sit down.
Space per seat
The dining room gives each of the 32 seats about 3.0 m² (32 sq ft). Your local rules on occupancy and exits decide how many seats you can have.
A simple kitchen
The plan has counters, two stoves and two fridges, but no dishwasher or extraction hood; add them from the Kitchen category of the library. There is no pass, so mark one with a counter and a text label.
Restroom doors face the tables
Both restroom doors open into the dining room. A short lobby or screen keeps them out of sight of the nearest tables.
Make it fit your space
Change the seating
Duplicate a table and each of its chairs (Ctrl/⌘ D), or make tables smaller by typing a new width and depth in the properties panel.
Rearrange the kitchen line
Move counters, stoves and fridges; add a dishwasher and a range hood from the library, and label a pass with text (T).
Check the gangways
Measure between tables with the measure tool (M) so staff can pass with trays.
