Two-Storey Family House Floor Plan
A two-storey family house on a 30 × 60 ft plot, 309.6 m² (3332 sq ft) in all: living, kitchen, two bedrooms, a toilet and a bath at the back, with the hall and the staircase in front. Upstairs the master bedroom, a bedroom, a bath, the hall and a front balcony. Both floors carry 3D fly-throughs.
Floor plan and 3D preview
- Rooms
- 16
- Floors
- 2
- Total room area
- 309.6 m² (3332 sq ft)
- Outer size
- 9.14 × 20.12 m (30′ × 66′)
- Doors and windows
- 11 doors · 10 windows
- Furniture items
- 39
Opens your own copy in the editor; the template itself never changes.
Layout overview

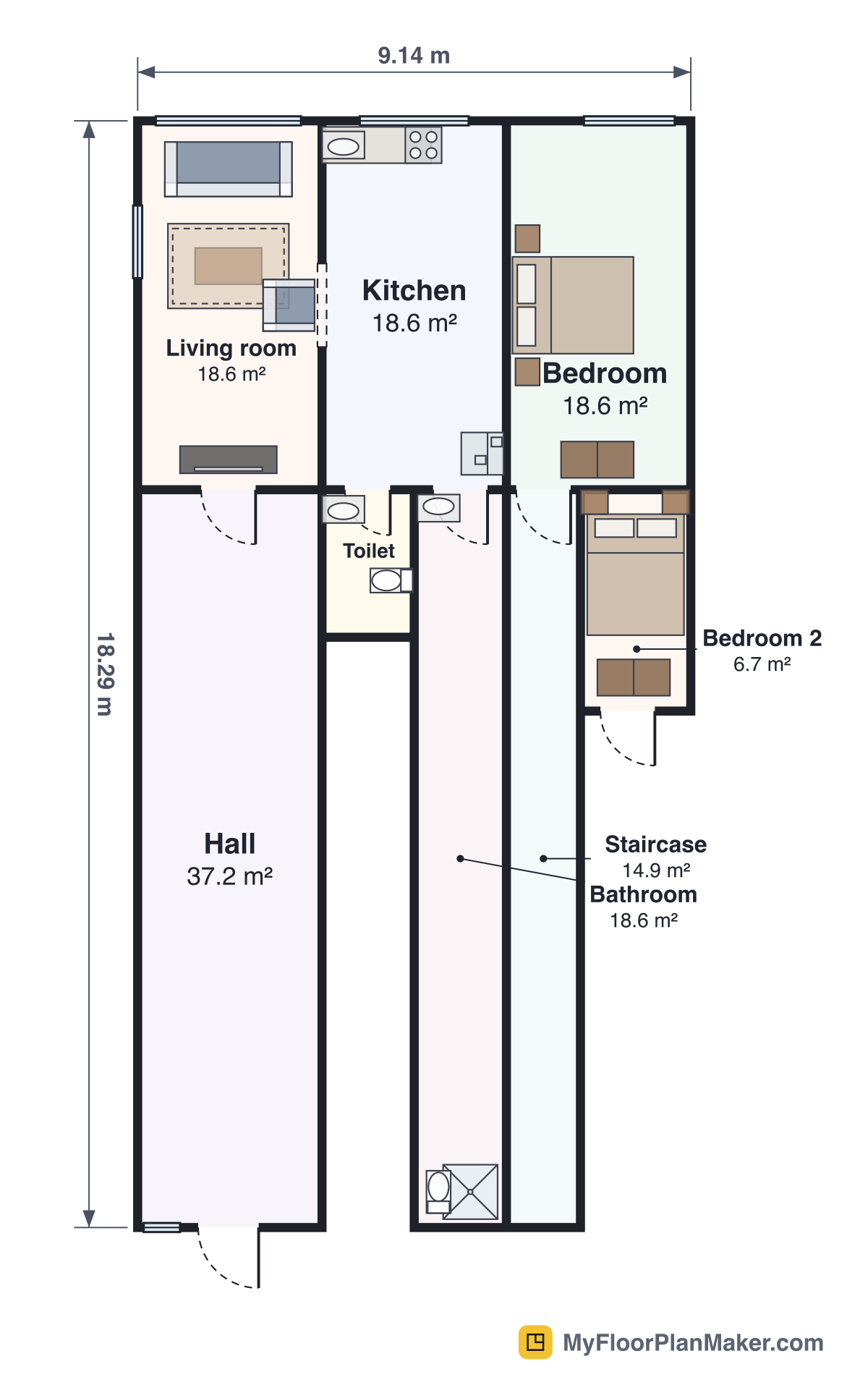

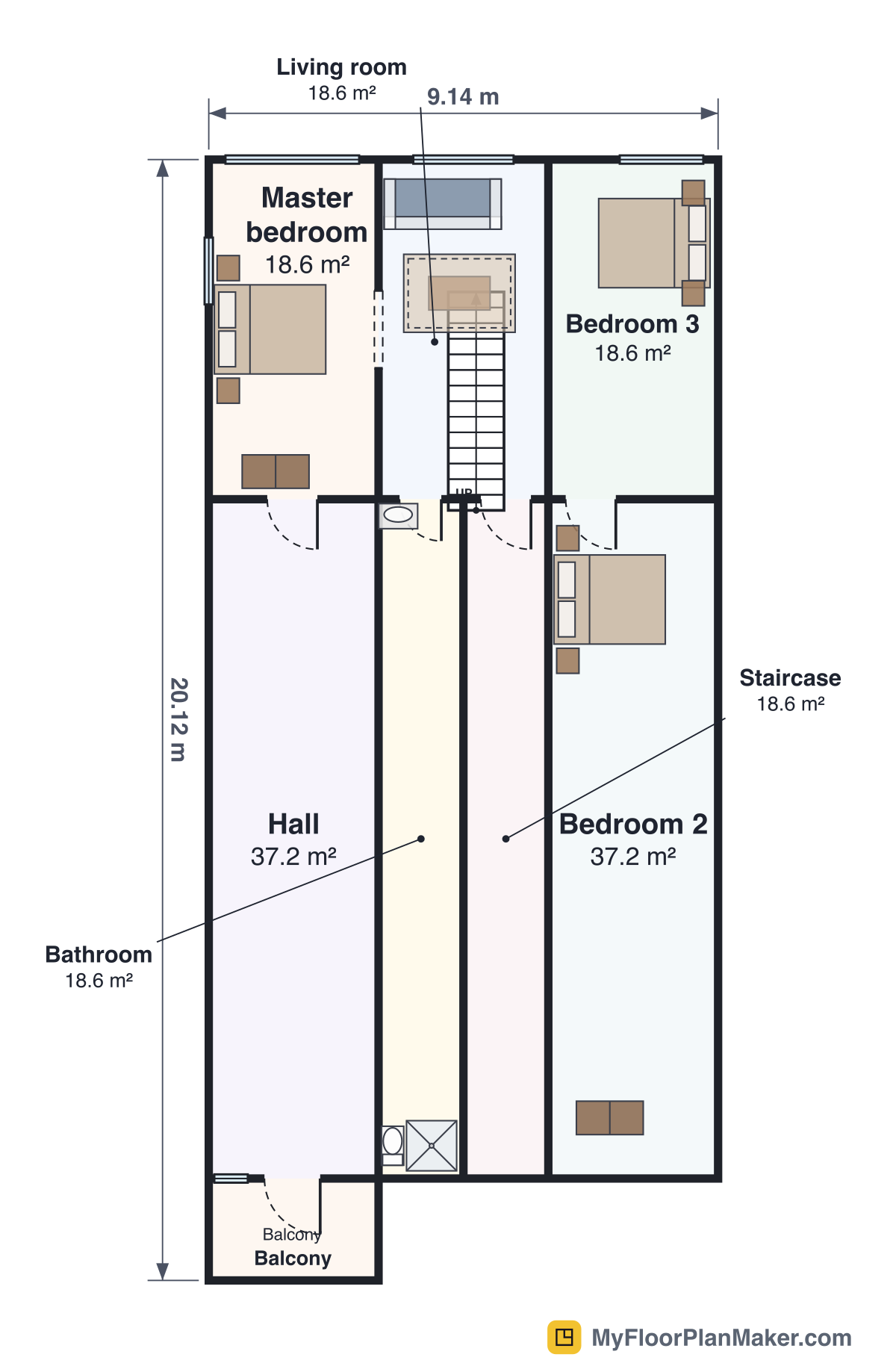

The ground floor measures 9.14 × 18.29 m (30′ × 60′) and the first floor 9.14 × 20.12 m (30′ × 66′) to the wall center lines of a 30 × 60 ft plot. The ground floor keeps the living room, the kitchen and a bedroom at the back, with the hall, the toilet, the bath and the staircase up front. The first floor has the master bedroom, a living lounge, bedroom 3, a bath, the stair and the front balcony above the sit-out.
Rooms and dimensions
| Room | Floor | Width × length | m² | sq ft |
|---|---|---|---|---|
| Hall | Ground Floor | 3.05 × 12.19 m (10′ × 40′) | 37.2 | 400 |
| Bath | Ground Floor | 1.52 × 12.19 m (5′ × 40′) | 18.6 | 200 |
| Bedroom | Ground Floor | 3.05 × 6.10 m (10′ × 20′) | 18.6 | 200 |
| Kitchen | Ground Floor | 3.05 × 6.10 m (10′ × 20′) | 18.6 | 200 |
| Living room | Ground Floor | 3.05 × 6.10 m (10′ × 20′) | 18.6 | 200 |
| Staircase | Ground Floor | 1.22 × 12.19 m (4′ × 40′) | 14.9 | 161 |
| Bedroom 2 | Ground Floor | 1.82 × 3.66 m (6′ × 12′) | 6.7 | 72 |
| Toilet | Ground Floor | 1.52 × 2.44 m (5′ × 8′) | 3.7 | 40 |
| Bedroom 2 | First Floor | 3.05 × 12.19 m (10′ × 40′) | 37.2 | 400 |
| Hall | First Floor | 3.05 × 12.19 m (10′ × 40′) | 37.2 | 400 |
| Bath | First Floor | 1.52 × 12.19 m (5′ × 40′) | 18.6 | 200 |
| Bedroom 3 | First Floor | 3.05 × 6.10 m (10′ × 20′) | 18.6 | 200 |
| Living room | First Floor | 3.05 × 6.10 m (10′ × 20′) | 18.6 | 200 |
| Master bedroom | First Floor | 3.05 × 6.10 m (10′ × 20′) | 18.6 | 200 |
| Staircase | First Floor | 1.52 × 12.19 m (5′ × 40′) | 18.6 | 200 |
| Balcony | First Floor | 3.05 × 1.83 m (10′ × 6′) | 5.6 | 60 |
| Total | 309.6 | 3332 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
A bedroom on each floor
Two bedrooms on the ground floor and two on the first, the master with its own bath.
The stair on the front half
The staircase sits at the front of the plot, so the back half is kept clear for the living and the bedrooms.
A front balcony upstairs
The 3.05 × 1.83 m (10′ × 6′) balcony runs across the front of the first floor, above the sit-out.
Two 3D fly-throughs
The ground and first floors each ship with their own set of saved cameras for the walk-through.
Furniture in the plan
- NightstandLibrary size 0.45 × 0.40 m (1′ 6″ × 1′ 4″)× 10
- Double bedLibrary size 1.60 × 2.00 m (5′ 3″ × 6′ 7″)× 5
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 4
- WardrobeLibrary size 1.20 × 0.60 m (3′ 11″ × 2′)× 4
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 3
- Coffee tableLibrary size 1.10 × 0.60 m (3′ 7″ × 2′)× 2
- RugLibrary size 2.00 × 1.40 m (6′ 7″ × 4′ 7″)× 2
- ShowerLibrary size 0.90 × 0.90 m (2′ 11″ × 2′ 11″)× 2
- SofaLibrary size 2.10 × 0.90 m (6′ 11″ × 2′ 11″)× 2
- ArmchairLibrary size 0.85 × 0.85 m (2′ 9″ × 2′ 9″)× 1
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 1
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 1
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
- TV standLibrary size 1.60 × 0.45 m (5′ 3″ × 1′ 6″)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A family house on a 30×60 plot
A complete two-floor plan sized for the common 30 × 60 ft plot.
Planning a duplex
The two floors are stacked room for room; adjust them to suit your family.
A walkthrough
Play the camera tour on either floor to show the spaces in order.
Things to consider
The ground-floor bath serves two bedrooms
The downstairs bath is on the front half; add a second one off the back bedrooms if you want one closer.
Check the stair
The straight stair is the editor's default for the floor height. Confirm its width and length against local rules.
The balcony is roofed
The 3.05 × 1.83 m (10′ × 6′) balcony on the first floor fronts the hall and master bedroom; it needs screening and drainage where you build.
Make it fit your space
Switch floors
Use the floors menu; the floor below shows faintly underneath.
Extend the balcony
Lengthen the balcony along the front of the first floor; the sit-out below gives it support.
Edit the tours
Open each floor's saved cameras in the 3D view and add or reorder stops.
Similar templates and layouts
- 10-room two-storey house floor plan template14 rooms · 254.2 m² (2737 sq ft)
- Two-story villa floor plan template12 rooms · 216.0 m² (2325 sq ft)
- 4 BHK duplex on a 40×60 plot floor plan template21 rooms · 221.0 m² (2379 sq ft)
- Two floors for a family houseCompare the two-floor house options, with sizes.
Frequently asked questions
How many floors does the family house have?
Two: the ground floor with 8 rooms and the first floor with 8 rooms, 16 in all.
How big is the plot?
30 × 60 ft (9.14 × 18.29 m), a common two-storey house plot. The house occupies the back half; the front is the sit-out and the balcony.
Where is the staircase?
The straight stair is on the front half of the ground floor and arrives at the first-floor hall, which opens onto the master bedroom and the other rooms.
How does it differ from the other house templates?
It targets the common 30 × 60 ft family plot, with the house in the back half and the sit-out and balcony up front. Use the 5-room template for a smaller single-storey plan, or the 10-room one for more rooms over two floors.
