10-Room Two-Storey House Floor Plan Template
A two-floor house with ten rooms across the floors, 254.2 m² (2737 sq ft) in all: two living rooms, three bedrooms and two bathrooms downstairs, and the bedrooms, a second living room, a bath and the stair hall upstairs. The plan ships with 3D fly-throughs on both floors.
Floor plan and 3D preview
- Rooms
- 14
- Floors
- 2
- Total room area
- 254.2 m² (2737 sq ft)
- Outer size
- 20.40 × 8.00 m (66′ 11″ × 26′ 3″)
- Doors and windows
- 10 doors · 8 windows
- Furniture items
- 44
Opens your own copy in the editor; the template itself never changes.
Layout overview

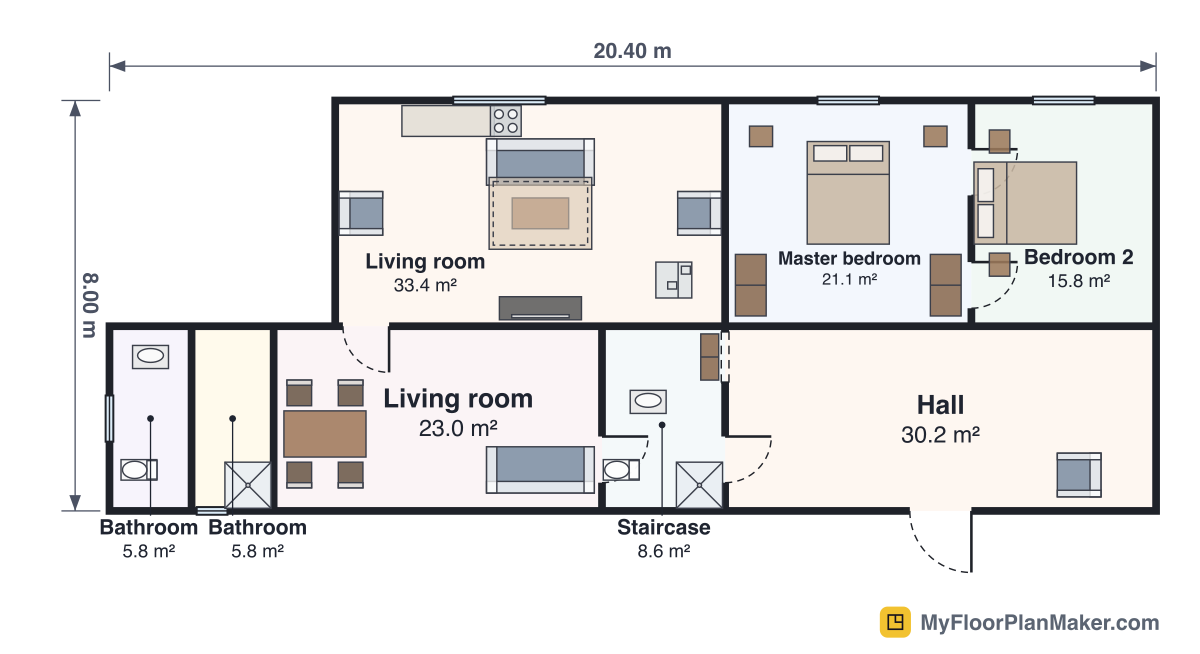

Each floor measures 20.40 × 8.00 m (66′ 11″ × 26′ 3″) to the wall center lines. The back row holds the main living room, the master bedroom and bedroom 2; the front row is the entrance hall, two baths, the second living room and the staircase. The first floor repeats the pattern with two more bedrooms and the stair arriving in the hall.
Rooms and dimensions
| Room | Floor | Width × length | m² | sq ft |
|---|---|---|---|---|
| Living room | Ground Floor | 7.60 × 4.40 m (24′ 11″ × 14′ 5″) | 33.4 | 360 |
| Hall | Ground Floor | 8.40 × 3.60 m (27′ 7″ × 11′ 10″) | 30.2 | 326 |
| Living room | Ground Floor | 6.40 × 3.60 m (21′ × 11′ 10″) | 23.0 | 248 |
| Master bedroom | Ground Floor | 4.80 × 4.40 m (15′ 9″ × 14′ 5″) | 21.1 | 227 |
| Bedroom 2 | Ground Floor | 3.60 × 4.40 m (11′ 10″ × 14′ 5″) | 15.8 | 171 |
| Staircase | Ground Floor | 2.40 × 3.60 m (7′ 10″ × 11′ 10″) | 8.6 | 93 |
| Bath | Ground Floor | 1.60 × 3.60 m (5′ 3″ × 11′ 10″) | 5.8 | 62 |
| Bath | Ground Floor | 1.60 × 3.60 m (5′ 3″ × 11′ 10″) | 5.8 | 62 |
| Living room | First Floor | 9.60 × 3.60 m (31′ 6″ × 11′ 10″) | 34.6 | 372 |
| Master bedroom | First Floor | 4.80 × 4.40 m (15′ 9″ × 14′ 5″) | 21.1 | 227 |
| Hall | First Floor | 4.80 × 3.60 m (15′ 9″ × 11′ 10″) | 17.3 | 186 |
| Bedroom 2 | First Floor | 3.60 × 4.40 m (11′ 10″ × 14′ 5″) | 15.8 | 171 |
| Bath | First Floor | 3.60 × 3.60 m (11′ 10″ × 11′ 10″) | 13.0 | 140 |
| Staircase | First Floor | 2.40 × 3.60 m (7′ 10″ × 11′ 10″) | 8.6 | 93 |
| Total | 254.2 | 2737 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
Living and sleeping separated
Ground floor 143.8 m² (1548 sq ft); first floor 110.4 m² (1188 sq ft). Daytime living stays below, the bedrooms upstairs.
A bath on each floor
The downstairs baths serve the living rooms and the staircase; the upstairs bath serves the bedrooms.
A stair between two floors
A straight stair on the ground floor lines up with the stair hall on the first floor.
Two 3D fly-throughs
Each floor carries its own set of saved cameras; play the tour on the floor you are looking at.
Furniture in the plan
- NightstandLibrary size 0.45 × 0.40 m (1′ 6″ × 1′ 4″)× 7
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 4
- Double bedLibrary size 1.60 × 2.00 m (5′ 3″ × 6′ 7″)× 4
- WardrobeLibrary size 1.20 × 0.60 m (3′ 11″ × 2′)× 4
- ArmchairLibrary size 0.85 × 0.85 m (2′ 9″ × 2′ 9″)× 3
- ShowerLibrary size 0.90 × 0.90 m (2′ 11″ × 2′ 11″)× 3
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 3
- SofaLibrary size 2.10 × 0.90 m (6′ 11″ × 2′ 11″)× 3
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 3
- Coffee tableLibrary size 1.10 × 0.60 m (3′ 7″ × 2′)× 2
- RugLibrary size 2.00 × 1.40 m (6′ 7″ × 4′ 7″)× 2
- BookshelfLibrary size 0.90 × 0.35 m (2′ 11″ × 1′ 2″)× 1
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 1
- Dining tableLibrary size 1.60 × 0.90 m (5′ 3″ × 2′ 11″)× 1
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 1
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
- TV standLibrary size 1.60 × 0.45 m (5′ 3″ × 1′ 6″)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A full family house
Ten rooms over two floors, with a bath on each level.
Planning a duplex
See how the two floors line up room for room.
A walkthrough brief
Export both floors and their camera tours to PDF or 3D.
Things to consider
Stair size is the default
The stair is the editor's default straight stair for the floor height. Check its width and length against the rules where you build.
The upstairs bath serves four rooms
The first floor has one bath for the master bedroom, bedroom 2, the living room and the hall. Add an en-suite if that matters.
No separate dining room
Dining is set up inside the front living room on the ground floor, by the hall; enclose a part of that room with a wall and a door to make a dedicated dining room if the household needs one.
Make it fit your space
Switch floors
Use the floors menu; the floor you are not on shows faintly underneath so the two levels stay aligned.
Move the stair
Drag the straight stair; keep the stair hall above it aligned.
Rework the camera tours
Edit each floor's saved cameras from the camera panel in the 3D view.
Similar templates and layouts
Frequently asked questions
How many rooms are on each floor?
Ground floor 8 rooms; first floor 6 rooms, 14 in all.
How big is the 10-room house?
254.2 m² (2737 sq ft) over two floors, measured to the wall center lines.
Where is the staircase?
On the ground floor the stair climbs beside the second living room; it arrives in the first-floor stair hall, which opens onto the bedrooms.
Is there a bathroom on every floor?
Yes. The ground floor has two baths (each 5.8 m² (62 sq ft) in size) off the front; the first floor has one bath for the upstairs bedrooms and living room.
