Hallway House Floor Plan Template
A hallway house of 88.5 m² (952 sq ft): three bedrooms open off a central hallway, with a kitchen, two toilets, a dining room, a wash area and the living hall at the front. A 3D fly-through visits each room in walking order.

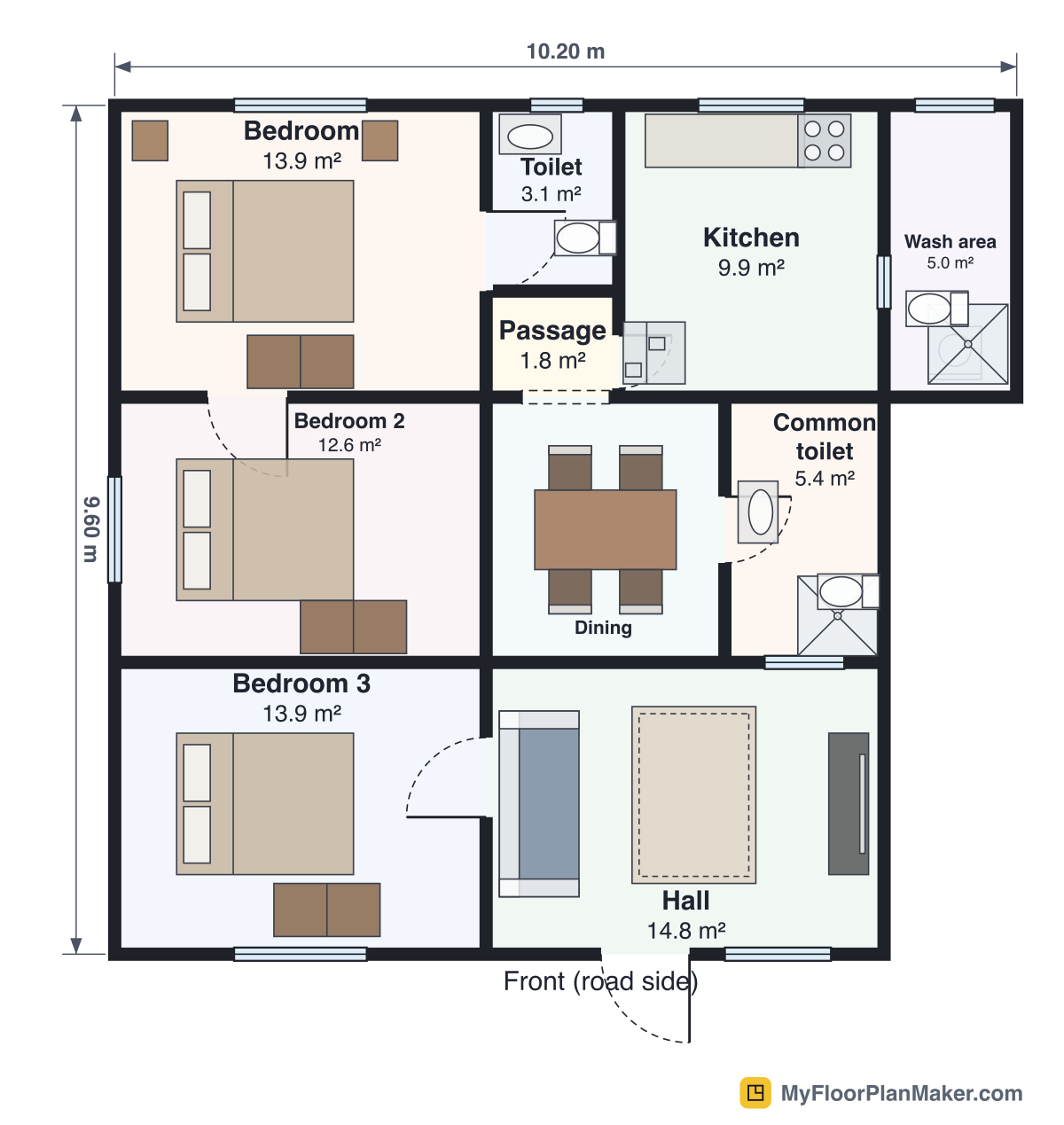

Floor plan and 3D preview
- Rooms
- 10
- Floors
- 1
- Total room area
- 88.5 m² (952 sq ft)
- Outer size
- 10.20 × 9.60 m (33′ 6″ × 31′ 6″)
- Doors and windows
- 6 doors · 9 windows
- Furniture items
- 27
Opens your own copy in the editor; the template itself never changes.
Layout overview
The plan measures 10.20 × 9.60 m (33′ 6″ × 31′ 6″) to the wall center lines. The master bedroom opens from the passage at the back, the front door lands in the living hall, and the kitchen and the two toilets are along the back row. The passage links the three bedrooms and the dining room.
Rooms and dimensions
| Room | Width × length | m² | sq ft |
|---|---|---|---|
| Hall | 4.50 × 3.30 m (14′ 9″ × 10′ 10″) | 14.8 | 160 |
| Bedroom | 4.20 × 3.30 m (13′ 9″ × 10′ 10″) | 13.9 | 149 |
| Bedroom 3 | 4.20 × 3.30 m (13′ 9″ × 10′ 10″) | 13.9 | 149 |
| Bedroom 2 | 4.20 × 3.00 m (13′ 9″ × 9′ 10″) | 12.6 | 136 |
| Kitchen | 3.00 × 3.30 m (9′ 10″ × 10′ 10″) | 9.9 | 107 |
| Dining | 2.70 × 3.00 m (8′ 10″ × 9′ 10″) | 8.1 | 87 |
| Common toilet | 1.80 × 3.00 m (5′ 11″ × 9′ 10″) | 5.4 | 58 |
| Wash area | 1.50 × 3.30 m (4′ 11″ × 10′ 10″) | 5.0 | 53 |
| Toilet | 1.50 × 2.10 m (4′ 11″ × 6′ 11″) | 3.1 | 34 |
| Passage | 1.50 × 1.20 m (4′ 11″ × 3′ 11″) | 1.8 | 19 |
| Total | 88.5 | 952 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
A hallway between the rooms
The passage and the 4.50 × 3.30 m (14′ 9″ × 10′ 10″) hall keep every bedroom and the kitchen reachable without passing through another room.
Two toilets, one common
The 5.4 m² (58 sq ft) common toilet serves the living spaces; the master bedroom has its own attached toilet.
A wash area off the kitchen
The 1.50 × 3.30 m (4′ 11″ × 10′ 10″) wash area holds the washing machine and opens from the kitchen.
Furniture in the plan
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 4
- Double bedLibrary size 1.60 × 2.00 m (5′ 3″ × 6′ 7″)× 3
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 3
- WardrobeLibrary size 1.20 × 0.60 m (3′ 11″ × 2′)× 3
- NightstandLibrary size 0.45 × 0.40 m (1′ 6″ × 1′ 4″)× 2
- ShowerLibrary size 0.90 × 0.90 m (2′ 11″ × 2′ 11″)× 2
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 2
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 1
- Dining tableLibrary size 1.60 × 0.90 m (5′ 3″ × 2′ 11″)× 1
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 1
- RugLibrary size 2.00 × 1.40 m (6′ 7″ × 4′ 7″)× 1
- SofaLibrary size 2.10 × 0.90 m (6′ 11″ × 2′ 11″)× 1
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
- TV standLibrary size 1.60 × 0.45 m (5′ 3″ × 1′ 6″)× 1
- WasherLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A multi-room rental
Three bedrooms off a hallway suit a landlord renting the rooms separately.
A family starter house
Three bedrooms, two toilets and a wash area on one floor.
A hallway-apt conversion
Use the layout as the basis for a walk-up apartment.
Things to consider
The common toilet is at the front
The 1.80 × 3.00 m (5′ 11″ × 9′ 10″) common toilet is near the entrance; add a second one off the passage if you want a toilet in the back half too.
Bedroom 3 faces the street
Bedroom 3 (13.9 m² (149 sq ft)) is on the road side, so it is noisier than the master.
The dining room opens off the passage
There is no separate living room; the dining room at the front doubles as the main family space. Enclose a larger one if the household needs more room to sit.
Make it fit your space
Open the dining into the hall
Delete the wall between the dining room and the hall for an open-plan front.
Add a bathroom on the passage
Draw a room off the passage (R) and add a toilet, shower and basin (D for the door).
Rearrange the tour
Reorder the saved 3D cameras from the camera panel to match how you want to show the rooms.
Frequently asked questions
How many bedrooms does the hallway house have?
Three: the master bedroom, 4.20 × 3.00 m (13′ 9″ × 9′ 10″) bedroom 2 and 4.20 × 3.30 m (13′ 9″ × 10′ 10″) bedroom 3, all off the passage.
Where is the kitchen?
The 3.00 × 3.30 m (9′ 10″ × 10′ 10″) kitchen is at the back, between the passage and the wash area, with the counter and stove on the outer wall.
How many toilets are there?
Two: the common toilet at the front and the master bathroom attached to the master bedroom.
How does it differ from the other house templates?
The passage layout keeps every room off the hallway instead of off a central hall. Use it for rentals and small family houses, or the 5-room template for a simpler single-storey plan.
