5-Room House Floor Plan Template
A single-storey five-room house of 43.8 m² (472 sq ft): two bedrooms, a dining room, a kitchen and a bathroom, with the entry hall at the road. Open it in the editor to change anything, and play its 3D fly-through, which visits each room in walking order.

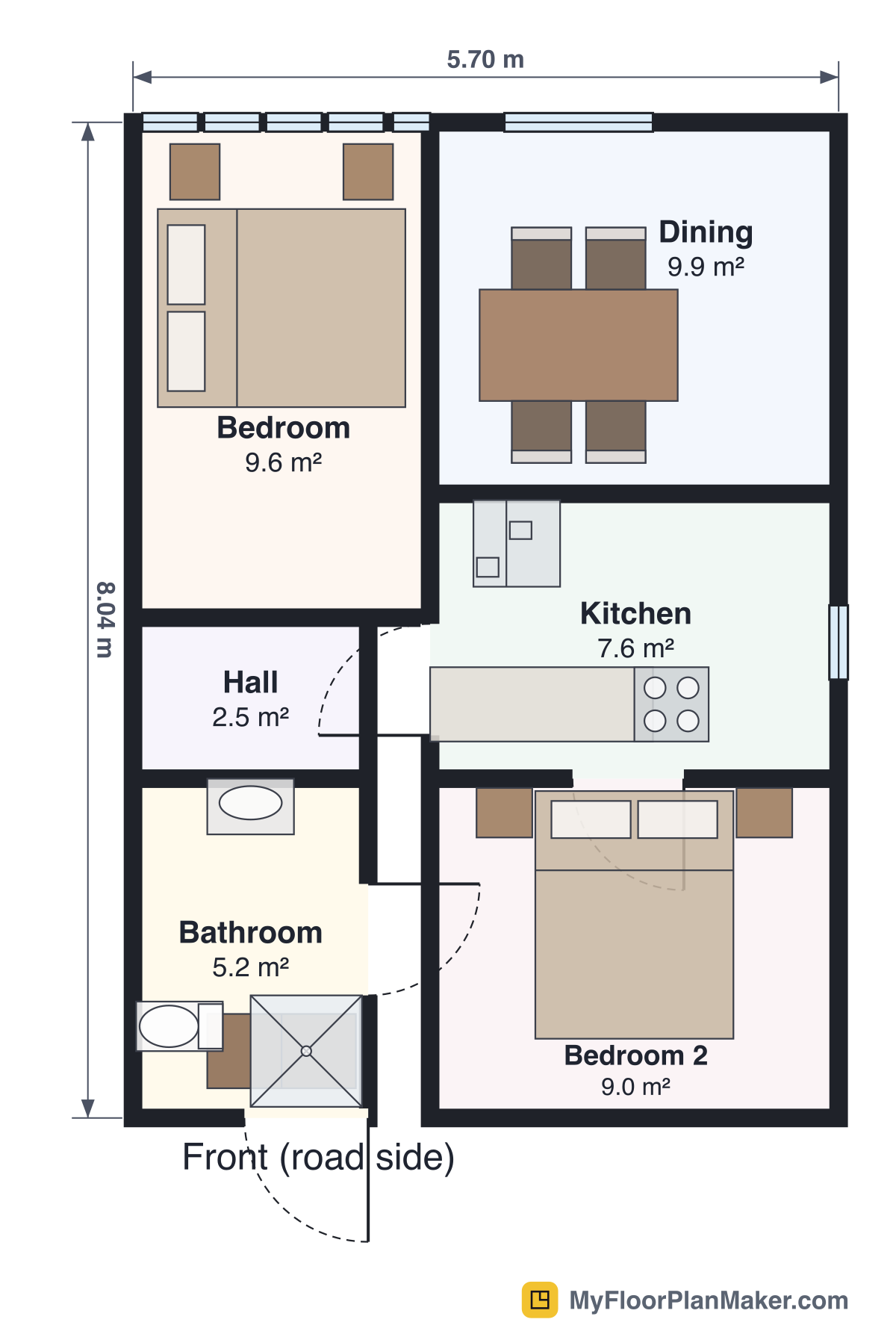

Floor plan and 3D preview
- Rooms
- 6
- Floors
- 1
- Total room area
- 43.8 m² (472 sq ft)
- Outer size
- 5.70 × 8.04 m (18′ 8″ × 26′ 5″)
- Doors and windows
- 4 doors · 7 windows
- Furniture items
- 18
Opens your own copy in the editor; the template itself never changes.
Layout overview
The plan measures 5.70 × 8.04 m (18′ 8″ × 26′ 5″) to the wall center lines. The front door opens from the road into the entry hall, which links the two bedrooms, the dining room and the kitchen, with the bathroom on its own side. The living area opens straight onto the dining space.
Rooms and dimensions
| Room | Width × length | m² | sq ft |
|---|---|---|---|
| Dining | 3.30 × 3.00 m (10′ 10″ × 9′ 10″) | 9.9 | 107 |
| Bedroom | 2.40 × 4.00 m (7′ 10″ × 13′ 1″) | 9.6 | 103 |
| Bedroom 2 | 3.30 × 2.74 m (10′ 10″ × 9′) | 9.0 | 97 |
| Kitchen | 3.30 × 2.30 m (10′ 10″ × 7′ 7″) | 7.6 | 82 |
| Bath | 1.90 × 2.74 m (6′ 3″ × 9′) | 5.2 | 56 |
| Hall | 1.90 × 1.30 m (6′ 3″ × 4′ 3″) | 2.5 | 27 |
| Total | 43.8 | 472 |
Sizes and areas are measured to the center lines of the walls, the same way the editor’s area schedule measures them, so each room’s clear floor is slightly smaller.
What makes this layout work
Every room reaches the hall
The 1.90 × 1.30 m (6′ 3″ × 4′ 3″) hall keeps the front door, and each room has its own door off it, so nothing is cut off from the others.
Two true bedrooms
The 9.6 m² (103 sq ft) bedroom and the 9.0 m² (97 sq ft) second bedroom are both sized for a full bed.
A shared 3D tour
The plan ships with four saved 3D cameras, one per room in walking order; play the fly-through to see the sequence of spaces.
Furniture in the plan
- ChairLibrary size 0.48 × 0.50 m (1′ 7″ × 1′ 8″)× 4
- NightstandLibrary size 0.45 × 0.40 m (1′ 6″ × 1′ 4″)× 4
- Double bedLibrary size 1.60 × 2.00 m (5′ 3″ × 6′ 7″)× 2
- CounterLibrary size 1.80 × 0.60 m (5′ 11″ × 2′)× 1
- Dining tableLibrary size 1.60 × 0.90 m (5′ 3″ × 2′ 11″)× 1
- FridgeLibrary size 0.70 × 0.70 m (2′ 4″ × 2′ 4″)× 1
- ShowerLibrary size 0.90 × 0.90 m (2′ 11″ × 2′ 11″)× 1
- SinkLibrary size 0.70 × 0.45 m (2′ 4″ × 1′ 6″)× 1
- StoveLibrary size 0.60 × 0.60 m (2′ × 2′)× 1
- ToiletLibrary size 0.40 × 0.70 m (1′ 4″ × 2′ 4″)× 1
- WardrobeLibrary size 1.20 × 0.60 m (3′ 11″ × 2′)× 1
Every item comes from the editor’s furniture library. Select one to move, rotate or resize it to match your own furniture.
Who this template suits
A starter house
Begin from a complete single-storey layout instead of a blank plan.
Showing a 3D walkthrough
Use the saved cameras to present the rooms in order without setting them up by hand.
Adapting room sizes
Drag the room walls; the dimensions and the 3D preview follow.
Things to consider
One bathroom for two bedrooms
The single bath serves both bedrooms and the living spaces. Add a second one off the hall if two households will use the house.
The dining room is enclosed
The 3.30 × 3.00 m (10′ 10″ × 9′ 10″) dining room has its own door. Open its wall into the living area for a more open plan.
No en-suite
Both bedrooms share the one bath and the front of the house; add a door and a second bathroom if you want one closer to the bedrooms.
Make it fit your space
Open the living and dining
Delete the wall between the living and dining rooms (select it and press Delete) for an open-plan lounge.
Add a bedroom
Split the largest room with a wall (W) and add a door (D) to make a three-bedroom plan.
Change the camera tour
Open the camera panel in the 3D view and add, rename or reorder the fly-through stops.
Frequently asked questions
How many rooms are in the 5-room house?
6 rooms on one floor: Dining, Bedroom, Bedroom 2, Kitchen, Bath, Hall.
How big is the 5-room house?
43.8 m² (472 sq ft) on one level, the hall included, to the wall center lines of 5.70 × 8.04 m (18′ 8″ × 26′ 5″).
Does the plan have a 3D walkthrough?
Yes. It ships with four saved 3D cameras placed one per room in walking order; play the fly-through from the 3D view.
How does it differ from the other house templates?
It is the smallest single-storey layout in the set, so it suits a small plot or a first plan. The hallway and ten-room templates add more rooms, and the two-storey one adds a second floor.
